Exploring the Engineering Behind Blast Tests: A Technical Deep Dive

INTRODUCTION

In hazardous environments, we rely on blast resistant buildings to protect us from various hazards, including potential explosions. This guide delves into the fundamental principles, test methodologies, and engineering considerations crucial for evaluating and blast testing for blast resistant buildings.

- -

Fundamentals of Blast Testing

Blast testing is a pivotal process in guaranteeing the resilience and safety of structures, particularly in high-risk areas. These tests involve staged explosions to simulate potential hazards, critically assessing a building's ability to withstand such threats.

Blast testing must be conducted by third-party engineering firms, not the manufacturers themselves. This is important for several reasons:

Unbiased Testing: Third-party engineers offer impartial assessments, free from manufacturer influence or bias towards specific products.
Objective Results: Independent testing ensures objectivity in test design, execution, and result interpretation, maintaining the integrity of the findings.
Avoiding Staging: Manufacturers might stage tests to achieve a certain desired result, while third-party engineers focus on real-world scenarios, ensuring more accurate and ethical assessments.
Comparative Analysis: Third-party tests enable fair comparisons with other market products, aiding potential buyers in making informed decisions. An in-house manufacturer may test against a competing product under unfair circumstances.

More benefits of utilizing a third-party engineering firm for blast testing include:

Consistency and Industry Standards: Independent engineers ensure testing consistency and application of industry standards, maintaining reliability across tests.
Post-Test Contributions: Beyond tests, these experts contribute to designing new methodologies for product enhancements and setting industry standards, resulting in safer, cost-effective products.
Industry Expertise: Collaboration with specialized engineers allows for tailored testing, pushing products to their limits and providing nuanced observations for improvement.
Access to Specialized Resources: Partnering with third-party entities grants access to specialized equipment, facilities, and data processing, otherwise unattainable, enhancing the testing process significantly.

Involving third-party entities in blast testing ensures an unbiased, ethical, and transparent evaluation process, which is fundamentally crucial in protecting teams in high-risk environments.

- -

Blast Load Characteristics

Blast events unleash high-intensity, short-lived forces that wield significant influence over structural integrity. Response levels, as defined by the American Society of Civil Engineers (ASCE), categorize the potential aftermath of a blast on a building. These levels determine the extent of damage and subsequent repair requirements:

Low response signifies localized damage with repairable integrity concerns and moderate repair costs.
Medium response indicates widespread damage, rendering the building unusable until significant repairs are made, incurring significant costs.
High response suggests severe structural damage or collapse potential, with repair costs approaching the expense of replacing the entire building.

Anything beyond medium response is correlated with injuries or fatalities, which is especially concerning for facilities housing critical systems in high-response scenarios.

The potency of a blast and its impact on a structure are contingent on several factors:

Strength of Blast: The force exerted by the explosion, often measured in pounds per square inch (psi), determines the intensity of the shock wave.
Proximity to Blast Wave: The distance from the epicenter of the explosion greatly influences the magnitude of the blast experienced by a structure.
Duration of Blast: The length of time the pressure from the blast is sustained plays a crucial role in determining the structural response.

Manufacturers of blast-resistant buildings often specify their resilience using a combination of psi and duration, typically measured in milliseconds (msec). However, there exists inconsistency in terminology across different manufacturers, leading to potential confusion. For instance, a building engineered to endure a 5 psi blast for 200 msec might also be advertised to withstand a blast of 5 psi at 500 psi-msec, representing the impulse or energy of the blast event. This distinction between duration and impulse often eludes professionals, potentially impacting their perception of a building's level of protection.

This subtle differentiation in conveying blast resistance can create confusion, possibly leading to the acceptance of inferior blast protection. It's critical to fully understand these calculations and inquire whether a description communicates duration or measures energy. Beware of manufacturers who fail to provide transparent information regarding the duration a building can withstand at its psi rating. Their inability to clarify this nuance may hint at a misrepresentation of the building's actual resilience.

- -

Blast Resistant Design Principles

Structural Engineering Considerations and Material Selection

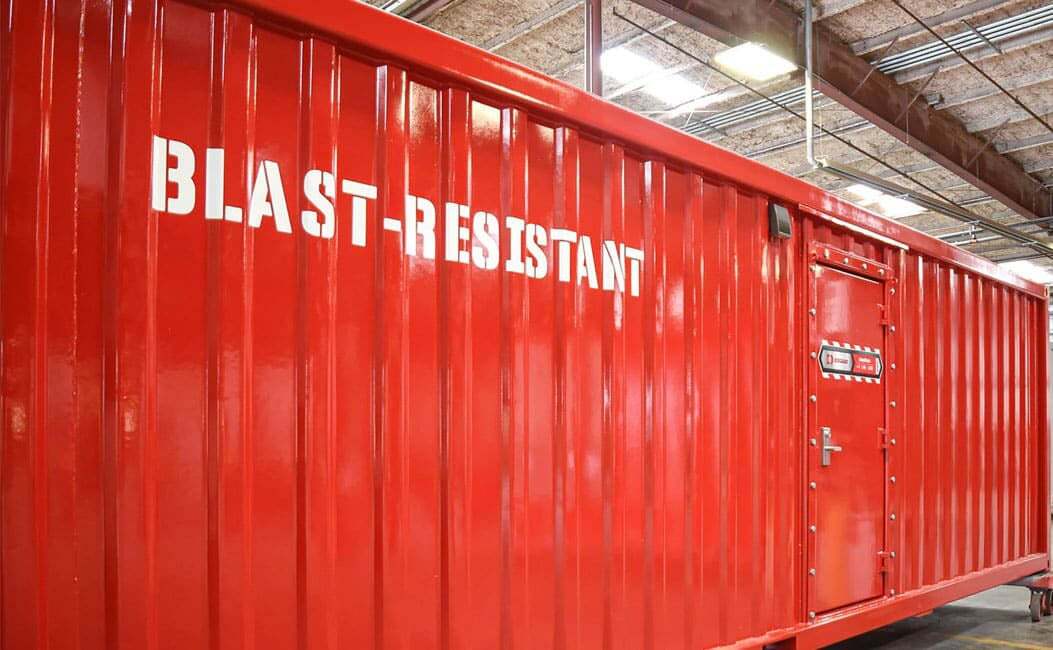

When weighing materials for blast-resistant buildings, both steel and concrete possess distinct merits. However, steel emerges as the superior choice due to its remarkable strength-to-weight ratio and its unique ability to flex under stress.

Unlike concrete, steel's inherent flexibility allows it to absorb and redirect energy during blasts, minimizing the risk of structural failure.

This capacity to withstand tension without fracturing, coupled with its resilience against warping or crumbling, positions steel as an optimal material for ensuring both safety and structural integrity in high-risk environments.

When you harness the natural flexibility of steel and pair it with strategic building design aimed at limiting deflection, you get a high-quality building designed to protect your team.

- -

Blast Resistant Design Regulations and Standards

Facility Siting Studies (FSS)

A facility siting study (FSS) is an evaluation within process safety management, particularly vital in high-risk industries such as oil and gas. It revolves around assessing the layout and positioning of structures and equipment within chemical processing plants. The study focuses on identifying potential hazards like blasts, fires, and toxic risks associated with these facilities. Experts, including structural and chemical engineers specializing in impact and blast response, collaborate to assess and document threats to existing and future-occupied structures.

Blast-Resistant-Buildings-Refinery-Hero-1024x408

A new FSS should be conducted every five years. When it comes to renewing a FSS, never make the mistake of relying on your current provider, just because they’ve conducted studies for you in the past. Just like any other product, it is critical to get quotes from different parties and compare products and materials. For the safety of your team, each FSS, whether new or renewed, deserves a fresh set of eyes. Take a close look at your past reports and pricing, no matter who provided them.

Skipping an FFS risks non-compliance with safety regulations and poses significant dangers if hazards remain unaddressed. The study's role in safeguarding personnel, preventing disasters, and protecting valuable assets justifies its indispensable place in ensuring a safer, compliant environment.

Learn how to prepare for your FSS here.

If your facility siting study results are complex, confusing, or present only one proprietary solution, consider seeking a second opinion from another reliable source. Doing so can provide a more comprehensive understanding of your results and available solutions.

- -

Risk Evaluation and Management

Maximum Credible Event (MCE)

The Maximum Credible Event (MCE) represents the worst-case scenario of an accidental explosion, fire, or agent release resulting from a specific quantity and arrangement of explosives, chemical agents, or reactive materials. NASA utilizes the MCE to evaluate the worst-case scenarios arising from accidental explosions or agent releases related to their activities.

In the context of blast testing blast resistant buildings, MCE serves as a risk analysis tool to estimate the effectiveness of existing safeguards. It helps assess how structures would withstand and mitigate the effects of extreme events, such as blasts, fires, or hazardous incidents.

Determining the MCE involves considering various factors like explosion propagation, burning rate characteristics, and the level of protection for the materials involved. This evaluation forms the basis for calculating potential effects and predicting casualties. By simulating or studying scenarios aligned with the MCE, engineers, and architects can assess the ability of buildings to endure and mitigate the effects of blasts or fires.

Quantitative Risk Assessment (QRA)

Quantitative Risk Assessment (QRA) is a foundational methodology employed across industries to assess and quantify risks. QRAs rely on consequence and frequency analysis to comprehensively assess potential threats and their likelihood. It goes beyond identification, providing insights into vulnerabilities, casualties, economic losses, and environmental impacts.

Within the context of blast tests, QRAs play a pivotal role in understanding the likelihood and consequences of hazardous events like explosions. They aid in understanding risks and devising effective mitigation strategies by identifying, quantifying, and mitigating risks. This approach enables organizations to reduce risks to acceptable levels and fortify against potential blasts.

- -

Blast Testing Methodologies

Shock Tube Testing

Shock tube testing involves pressurizing a large tank and releasing a powerful blast of air to simulate the effects of an explosion. This testing specifically targets various structural elements like doors, windows, and wall sections. By subjecting these elements to controlled blasts, engineers can evaluate their response to sudden pressure changes and assess their resistance to blasts or impacts. This method helps identify vulnerabilities and informs modifications necessary to enhance a structure's resilience.

Modeling

Modeling is pivotal in assessing a building's response to extreme events like blasts, fires, or thermal incidents. Engineers create virtual replicas of structures and simulate different scenarios through Finite Element Analysis (FEA) and specialized modeling software. These models aid in facility siting studies and allow adjustments based on real-life blast test data.

Models are tested for various scenarios encompassing fire and blast simulations (FSS), thermal analyses, and structural fire evaluations. These simulations apply diverse loads to the building, providing insights into its behavior under different stressors. The iterative process of model adjustment based on real blast test data ensures more accurate predictions and improves foundation design and safety measures.

Field Testing

Conducting field blast tests presents multifaceted challenges, primarily centered around safety precautions and replicating real-world conditions accurately. The idea is to make the blast test as similar to a real-life scenario as possible.

Accurate replication of real-world conditions involves precise calibration of explosive charges, considering factors like charge size, proximity, and direction of the blast. This meticulous planning ensures that field tests mimic plausible threat scenarios realistically. Measuring blast effects at varying distances from the explosion source helps validate predictive models and understand potential damage to different building components.

Field tests offer invaluable empirical data that supplements theoretical models. This data aids in refining and validating simulations, creating a feedback loop where tests inform and enhance predictive tools. By collecting this data, engineers can improve the accuracy of models used to assess blast resistance and strengthen building designs.

Field testing not only enhances building design but also allows engineers to improve efficiencies. For example, this could include reducing structural weight or discovering more cost-effective foundation or anchor designs.

- -

Data Analysis and Interpretation

The last step of a blast test involves analyzing and interpreting the test data. Engineers employ comprehensive strategies to decipher blast test data, meticulously analyzing numerical measurements, like pressure levels and material responses, alongside qualitative evaluations to unravel the subtleties of structural failure. By harnessing advanced statistical tools, they unveil patterns within the data.

Validation

The validation of predictive models is pivotal for their real-world application. Engineers recognize the need to continually refine these models to maintain their precision. This iterative process involves constantly comparing simulated predictions with real blast test results, fine-tuning models to mirror the intricate dynamics of structural behavior. This approach not only boosts the accuracy of predictive tools but also instills confidence in designing resilient structures capable of withstanding unforeseen events.

Blast Tests Should Protect, Not Sell

A true understanding of blast test engineering empowers facility managers, engineers, and blast resistant building manufacturers to protect the lives of teams in hazardous environments. Remember that blast tests must be conducted outside of the organization manufacturing and selling blast resistant structures. This separation ensures unbiased and reliable results, which are vital for accurately assessing a building's ability to handle blasts.

If you don’t know where to turn for support, use the link below to reach out. We will connect you with one of the leading engineers in the industry for a free 30-minute consultation.
